THE UCL EYE

CASE STUDY

To celebrate its 200th anniversary UCL were looking to create a striking centrepiece as part of their new Wilkins Building Refurbishment. The ambition was to establish a permanent visualisation platform, an architectural centrepiece capable of transforming complex academic research into immersive, AI driven digital experiences.

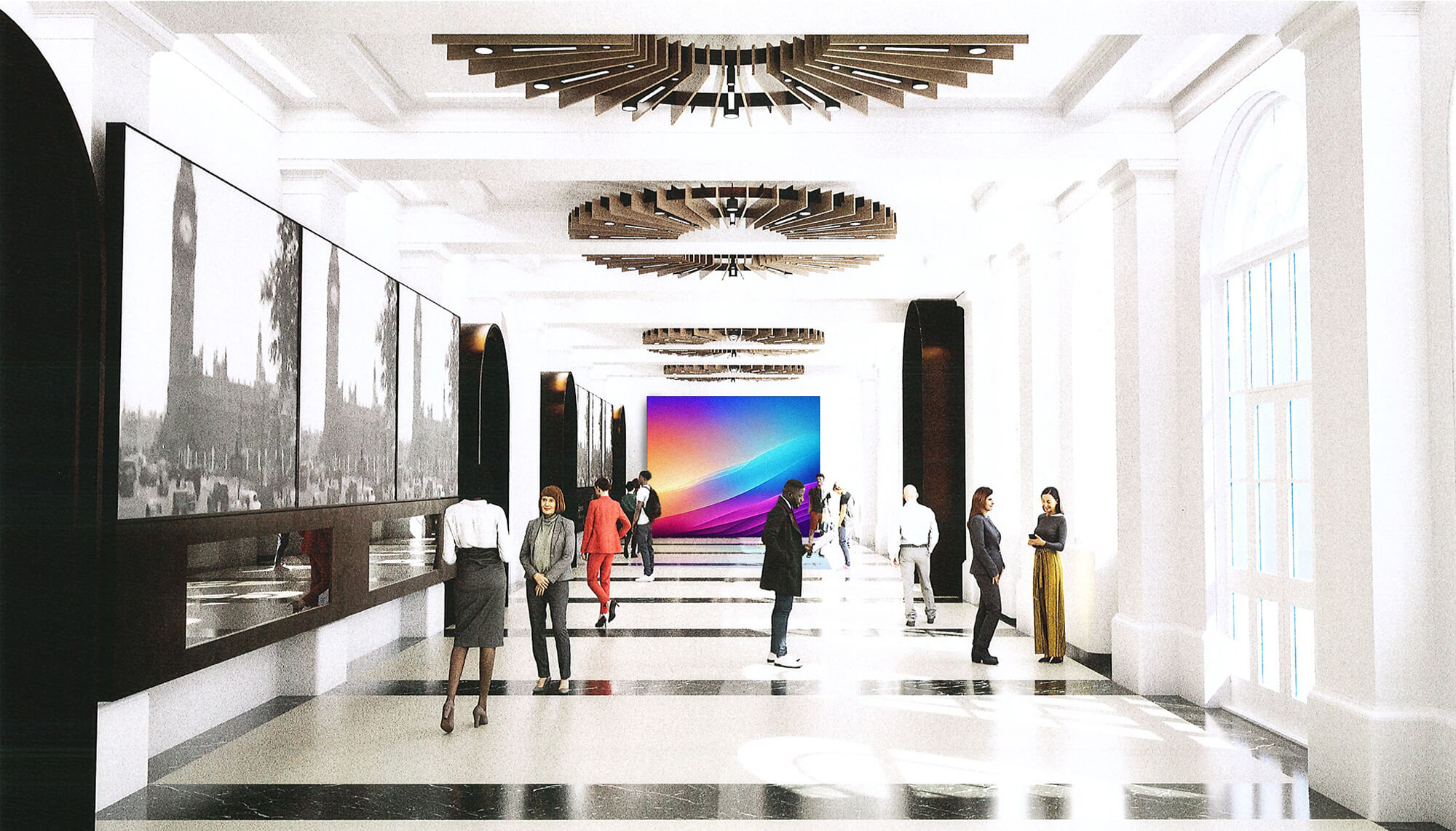

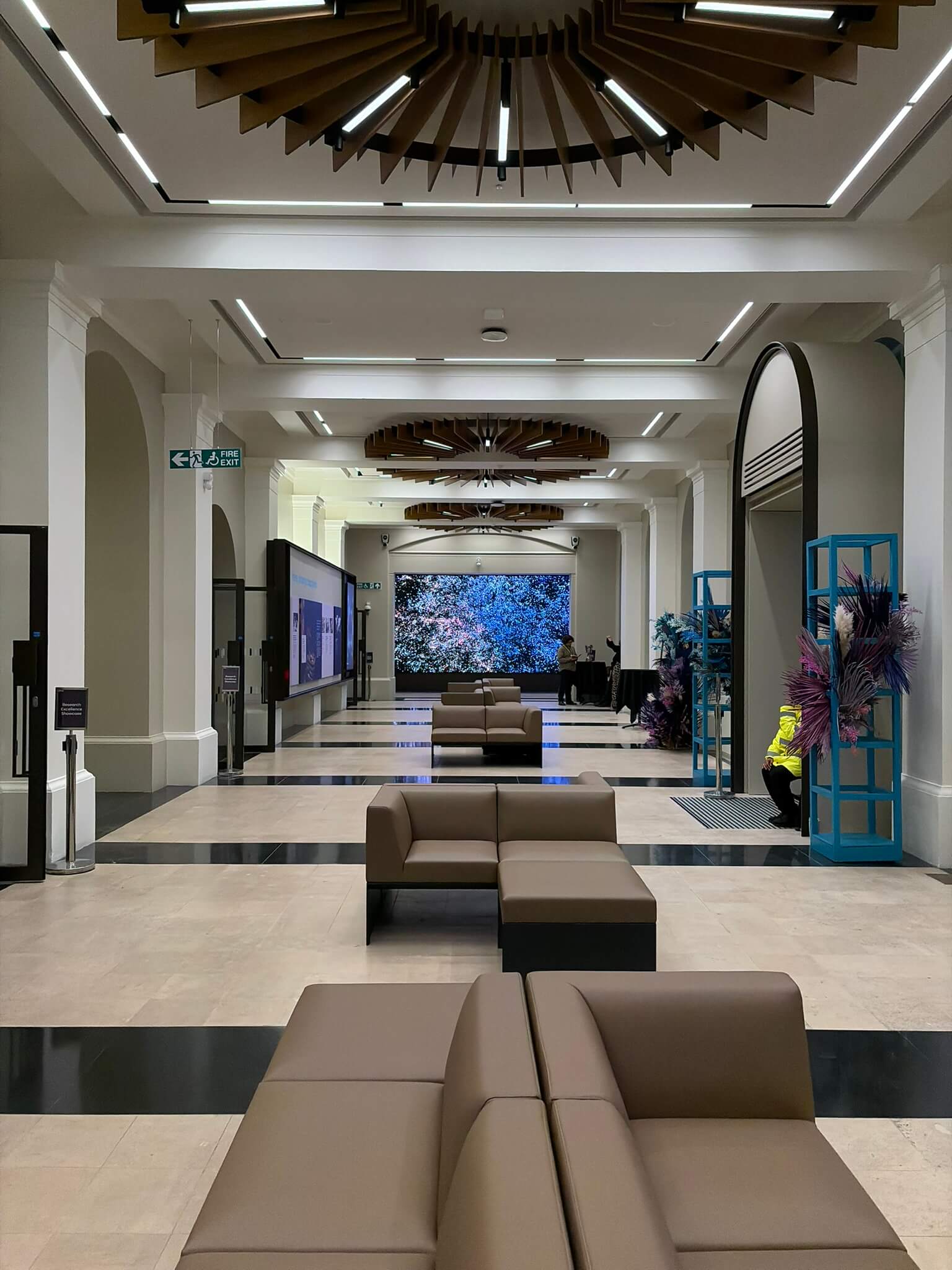

The result is the UCL Eye, a large-scale, high-resolution LED display housed within the refurbished Wilkins North Corridor. Direct View Solutions were appointed to design, engineer and deliver the infrastructure behind this landmark project.

  • 6.6M x 3.03M Premium COB LED Wall
  • 7040 x 3240 Resolution
  • 3840Hz Refresh Rate
  • Over 22 Million Individual LED’s

Engineering a State of the Art Digital Canvas

At the heart of the installation is a 6.6m by 3.03m premium COB (Chip-on-Board) Direct View LED wall, configured to operate at an almost 8K resolution of 7040 by 3240 pixels. Comprising of over 22 million individual LEDs, the display functions as a unified, precision-calibrated digital surface.

Specified at an ultra-fine 0.9mm pixel pitch, the wall delivers seamless imagery at viewing distances from as close as one metre while maintaining visual coherence across the full corridor sightline.

With a brightness level of 800 nits and a 3840Hz refresh rate, the system ensures stable, flicker-free rendering of dynamic generative AI content. DCI-P3 colour compliance was critical to achieving an accurate reproduction of the complex data visualisations powering the install. The wall was calibrated with pixel-for-pixel alignment in mind.



Integration Within a Live Construction Environment

The installation formed part of the wider Wilkins North refurbishment and was delivered while the corridor itself remained an active construction site. Mounting surfaces and architectural elements were being completed in parallel with LED deployment, requiring close coordination with contractors and structural teams.

We engineered and installed a 514kg front-serviceable COB cabinet system with sub-millimetre alignment tolerances. At a 0.9mm pixel pitch, even the slightest deviation in cabinet positioning can compromise image uniformity, so structural accuracy and methodical calibration were paramount.

The programme was delivered over two weeks on site, including a week of installation followed by a dedicated commissioning phase. During commissioning, colour uniformity, brightness consistency and seam alignment were fine-tuned to ensure the wall operated as a single continuous canvas.

Despite the constraints of a live refurbishment programme, the project was delivered on time and within budget.

“Thank you to all of the Direct view team for the collaborative efforts in achieving the installation of the UCL Eye. The joint effort of all the team working in a live construction environment was inspirational and an example of how good communication and direct positive action can motivate others to follow that standard. Thanks to your team for their positive attitude and collaborative approach which was largely down to good relationships developed between all parties. The UCL Eye is really an example of technology at its best delivered with a joint team effort. Thanks once again for your contribution as part of the successful delivery of this project.”

Phil Jones, UCL Head of Delivery

Performance, Sustainability and Long-Term Strategy

Beyond resolution and scale, operational efficiency was a core requirement. The premium COB platform provides up to 40% lower energy consumption compared with conventional SMD LED systems, alongside significantly reduced heat output. The cool-to-touch surface and low BTU generation minimise environmental load within the enclosed corridor setting.

A Colourlight control system incorporating Eclipse power management technology enables intelligent standby operation when the wall is not actively in use, further reducing total energy draw.

As part of the wider building systems integration the wall was also interfaced with UCL’s central fire alarm infrastructure via a Q-SYS Core control platform. In the event of fire alarm activation, the system initiates a controlled and immediate shutdown sequence, ensuring safe power-down of the LED wall and associated processing equipment in line with life-safety protocols.

Full front-service access ensures long-term maintainability without intrusive structural intervention. A three-year SLA underpins the installation, providing UCL with operational assurance and performance continuity.

A Cultural and Technological Landmark

The inaugural visualisation powering The UCL Eye, Universitas, was created by Dr Mohamad Zeina and Professor Parashkev Nachev of the UCL Queen Square Institute of Neurology at University College London.

Their interdisciplinary work transforms 369,766 research papers produced over 166 years into a dynamic three-dimensional universe. Each publication appears as a star, its size reflecting citation impact and its colour denoting academic discipline. Through advanced AI modelling, intellectual relationships are expressed as spatial distance and gravitational interaction, allowing the university’s research history to be experienced as an evolving digital cosmos.

By delivering a near-8K ultra-fine pitch COB LED canvas capable of faithfully rendering this complex visualisation, Direct View Solutions has enabled a permanent architectural feature that blends engineering precision with scientific creativity.

With more than 22 million LEDs operating as a single calibrated system, The UCL Eye stands as a landmark cultural installation within the higher education sector. Combining advanced AI visualisation with precision LED infrastructure at an exceptional scale.
